Floating connectors

2022 11/09

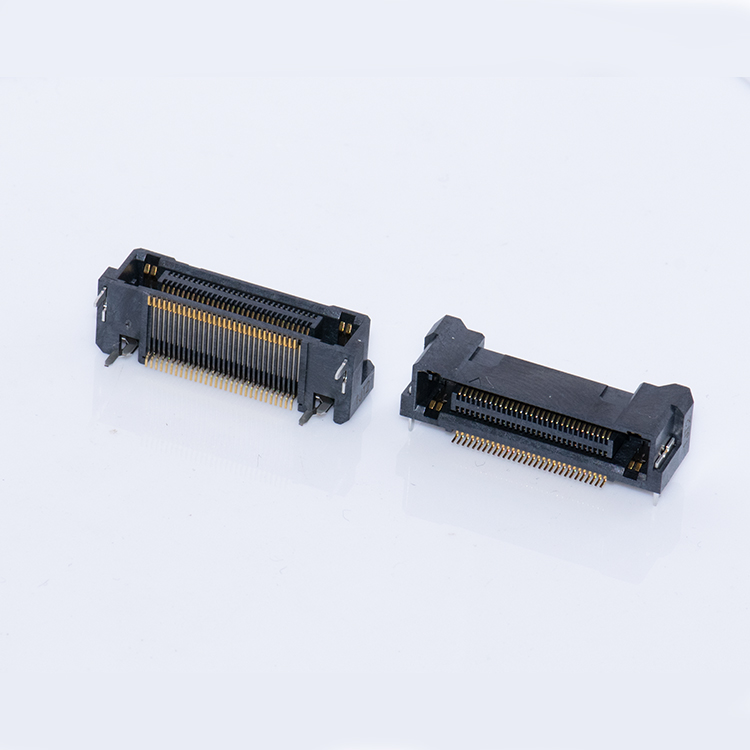

The "floating connector" is an electromechanical interconnection that is often used to eliminate misalignment in the "x" and "y" directions when mounting the interface on the PCB. The floating structure inside the connector prevents damage to individual components on the PCB (e.g. solder joints and other connector interfaces).

In particular, misalignments in the "x" and "y" directions during PCB mounting and assembly are eliminated.

As part of the overall PCB design process, it is particularly important to take into account all relevant dimensions and tolerances associated with them.
Examples: screw holes, floating and rigid connector sides and the interface between PCB and SMT connector contacts.

With the trend towards miniaturization, this has greatly driven the need for size reduction, while at the same time limiting the area of the PCB. These have made solutions in robotic automated assembly and finer pitch connections necessary.
